RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm

Name: RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm
Brand: UN.Tex (Dalian) Co.,Ltd
SKU: K2321
Price: 3.00 USD
Availability: InStock

Alle Produkte

Klebendes Isolierungs-Band
(114)

Glasgewebe-Isolierungs-Band
(59)

Hitzebeständiges Isolierungs-Band
(43)

Glasgewebe-Klebstreifen
(33)

Polyimide-Film-Klebstreifen
(47)

Aluminiumfolie-Klebstreifen
(67)

Aluminiumfolie-Glasgewebe-Band
(11)

Folienbeschichtetes Kraftpapier
(15)

Aluminiumfolie-Fiberglas-Stoff
(22)

Folien-Baumwollstoff-Band
(13)

Stoff-Panzerklebeband
(24)

Doppeltes mit Seiten versehener Klebstreifen
(9)

HAUSTIER Klebstreifen
(7)

Präzisions-Feinguss
(49)

Elektrische Isolationsplatte
(37)

Beste Produkte

Beständiger Polyimide-elektrisches Isolierungs-Band der hohen Temperatur

Elektrisches Band der Isolierung Polyimide-hohen Temperatur

H-Grad Polyimide-Film-Klebstreifen

Bescheinigung

CHINA UN.Tex (Dalian) Co.,Ltd zertifizierungen

Ich bin online Chat Jetzt

RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm

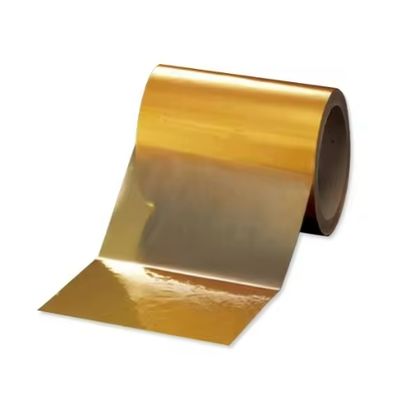

Großes Bild : RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm

Produktdetails:

Herkunftsort:	CHINA
Zertifizierung:	RoHS
Modellnummer:	K2321

Zahlung und Versand AGB:

Min Bestellmenge:	500M2
Preis:	Usd1~5/roll
Verpackung Informationen:	Exportkartonkasten
Lieferzeit:	35 Arbeitstage
Zahlungsbedingungen:	L/c, t/t
Versorgungsmaterial-Fähigkeit:	50,000m2 pro Monat

Kontakt

RoHS Compliant Polyimide Film Adhesive Tape with Long Term 180℃ Working Temperature and Tensile Strength ≥25N/10mm

Beschreibung

Temperaturbereich:	-73°C bis 260°C	Haftung:	≥1,8N/10mm
Auswahl der Grundstoffdicke:	7.5 μm, 12,5 μm, 25 μm und 50 μm	Merkmale:	Polyimide-Film-Klebstreifen
BDV:	≥ 2,0KV	Material:	Polyimidefilm
Vielseitige Anwendungen:	Elektronik: PCB -Isolierung, Spulenverpackung und Komponentenschutz. Halbleiter: Maskieren während R	Zugfestigkeit:	≥ 25N/10mm
Mechanische Stärke:	Gut	Chemische Stabilität:	Gut
Hervorheben:	Long Term 180℃ Working Temperature Polyimide Film Adhesive Tape , Tensile Strength ≥25N/10mm PI Tape , Adhesion ≥1.8N/10mm Kapton Tape

RoHS Compliant Polyimide Film Adhesive Tape Long Term 180℃ Working Temperature

Description

The Polyimide Film Adhesive Tape is engineered to deliver exceptional performance in extreme environments, combining outstanding resistance to high and low temperatures, excellent electrical insulation properties, superior chemical stability, and high mechanical strength.

Features

Product Name: Polyimide Film Adhesive Tape
Standard Roll Length: 33 meters
Temperature Range: -73℃ to 260℃
Thickness: 30um~100um
Working temp.: 180℃ (long Term)
Tensile Strength: ≥25N/10mm
Adhesion: ≥1.8N/10mm
Attributes: Excellent balance of electrical, chemical and physical property, low & high temperature resistant, Polyimide Film

Technical Parameters

Product Attribute	Details
RoHS Compliant	Yes
Product Name	Pressure Sensitive Silicone Adhesive PI Tape For PCB With High Elongation And Adhesive
Color	Amber
Adhesion	≥1.8N/10mm
Temperature Range	-73℃ to 260℃
Base Material Thickness Options	7.5 µm, 12.5 µm, 25 µm, and 50 µm
Tensile Strength	≥25N/10mm

Applications

Electrical Insulation: Widely utilized in electrical and electronic applications owing to its superior insulating properties. It is especially suited for wrapping wires, cables, and electrical components, delivering reliable insulation along with protection against heat and electric currents.

PCB Manufacturing: Frequently applied in the production of printed circuit boards (PCBs). Its combination of high-temperature resistance and strong adhesive quality makes it well-suited for masking and safeguarding PCBs throughout the manufacturing process.

General Industrial Use: Ideal for a variety of industrial settings that demand thermal conductivity, flexibility, and insulation. It performs effectively in tasks such as sealing, splicing, and bundling across diverse industrial environments.
