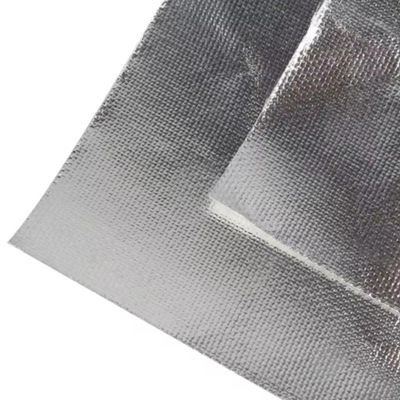

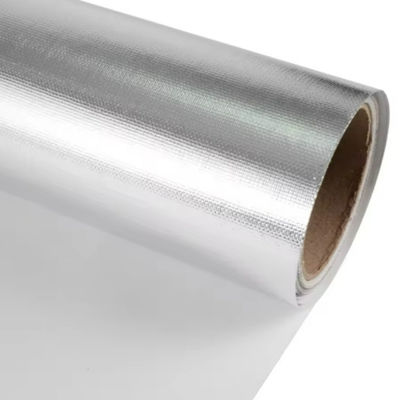

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Bescheinigung
CHINA UN.Tex (Dalian) Co.,Ltd zertifizierungen
CHINA UN.Tex (Dalian) Co.,Ltd zertifizierungen
Ich bin online Chat Jetzt

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation
Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Großes Bild :  Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Produktdetails:
Herkunftsort: CHINA
Modellnummer: AG-R701
Zahlung und Versand AGB:
Min Bestellmenge: 6000 Quadratmeter
Preis: basing quantity
Verpackung Informationen: PALETTE
Lieferzeit: ungefähr 30 Werktage
Zahlungsbedingungen: T/t
Versorgungsmaterial-Fähigkeit: 500000 Quadratmeter

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Beschreibung
Al -Folie -Dicke: 7 ähm Basisgewicht: 118 g/m²
Glasgewebegewebe: 10x9 DEHNFESTIGKEIT - MD: 225 N/25 mm
Zugfestigkeit - XD: 150 N/25 mm Berstdruck: 100 N/c㎡
Permeanz (WVTR): 5,75 ng/Ns Dimensionsstabilität: Weniger als 0,5%
Emissivität: 0,03 Verfügbare Rollenbreite: 1.0m, 1.2m, 1.25m, 1.3m
Länge: 50 m Brandbewertung: Klasse O – Bestanden
Hervorheben:

10×9 Mesh Glass Cloth Foil-Glass Cloth Facing

,

7 um Al foil thickness Aluminum Foil Fiberglass Cloth

,

118 gsm Basis Weight Foil-Glass Cloth Facing

Flame-retardant Foil-Glass Cloth Facing With 10×9 Mesh Glass Cloth
The Flame-retardant Foil-Glass Cloth Facing is a utility-grade composite facing material designed for insulation systems requiring high strength and flame retardancy. This product features a unique composite structure that laminates a thin aluminum foil to a high-strength fiberglass cloth using a flame-retardant adhesive. It not only possesses high tensile strength and exceptional tear resistance to withstand physical stress during installation and use but also acts as an effective vapor barrier, widely used as a protective outer layer for duct wrap, duct board, and pipe insulation.
Typical Physical Properties
Physical Properties Value
Alum.Foil 7 um
Basis Weight 118 gsm
Permeance(WVTR) 5.75 ng/N.s
Tensile Strength - MD 225 N/25mm
Tensile Strength - XD 150 N/25mm
Burst Strength 100 N/c㎡
Dimensional Stability less than 0.5%
Emissivity 0.03
Fire Rating Class O - Passed
Glass Cloth Mesh 10x9
Advantages
  • Exceptional Mechanical Strength
    The fiberglass cloth core provides high tensile and tear resistance, ensuring durability and reducing damage risk during installation and service.
  • Reliable Flame Retardancy
    The flame-retardant adhesive and composite design effectively inhibit flame spread, enhancing the insulation system's fire safety.
  • Excellent Vapor Barrier Properties
    The dense foil layer blocks moisture ingress, preventing condensation-induced performance loss and corrosion.
Applications
  • HVAC Systems: Primarily used as the outer facing for duct wrap and duct board, providing protection and acting as a vapor barrier.
  • Pipe Insulation: Used to wrap around various industrial and commercial pipe insulation materials (such as fiberglass or rock wool) serving as a protective and sealing layer.
  • Industrial & Building Insulation: Suitable for the final protective layer on insulation systems for building envelopes and industrial equipment where specific strength or flame retardancy requirements exist.
