High Temperature Polyimide Tape – 260°C Heat Resistant, Electrical Insulation & PCB Masking For Soldering

Großes Bild : High Temperature Polyimide Tape – 260°C Heat Resistant, Electrical Insulation & PCB Masking For Soldering

Produktdetails:

Herkunftsort:	China
Zertifizierung:	RoHS
Modellnummer:	K2321

Zahlung und Versand AGB:

Min Bestellmenge:	500m2
Preis:	based on sizes and quantity
Verpackung Informationen:	Kartonetui exportieren
Lieferzeit:	35 Werktage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	50.000 m2 pro Monat

Kontakt

High Temperature Polyimide Tape – 260°C Heat Resistant, Electrical Insulation & PCB Masking For Soldering

Beschreibung

Produktkategorie:	Klebeband aus Polyimidfolie	Halogenfrei:	Ja
Dicke:	30 um ~ 100 um	Standardrollenlänge:	33 Meter
Optionen für die Dicke des Grundmaterials:	7,5 µm, 12,5 µm, 25 µm und 50 µm	BDV:	≥2,0 kV
Arbeitstemp.:	180℃ (langfristig)	Temperaturbereich:	-73℃ bis 260℃
Zugfestigkeit:	≥25N/10mm	Haftung:	≥1,8N/10mm
Merkmale:	Klebeband aus Polyimidfolie	Anwendung:	Hochtemperaturanwendungen
Hervorheben:	high temperature polyimide tape , heat resistant electrical insulation tape , PCB masking tape for soldering

High Temperature Polyimide Tape – 260°C Heat Resistant, Electrical Insulation & PCB Masking For Soldering

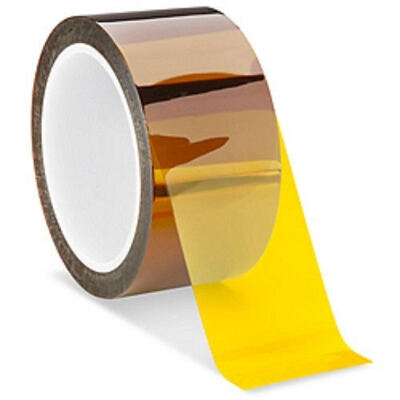

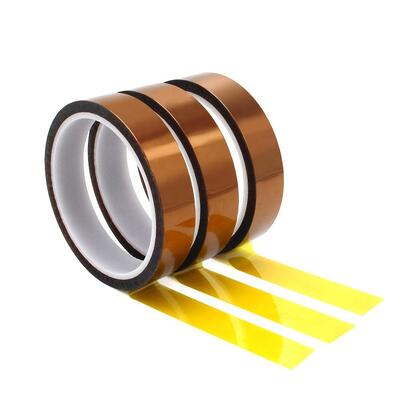

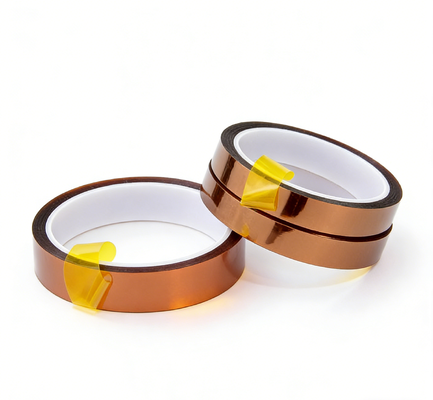

PI tape (Polyimide tape) is made of a high-temperature resistant polyimide film backing coated with high-performance silicone adhesive. It offers excellent electrical insulation and heat resistance. Widely used in electronics manufacturing, high-temperature masking, and lithium-ion battery tab fixing, it is a critical auxiliary material in precision industrial processes. Its operating temperature typically ranges from -70°C to 260°C, with the ability to withstand even higher temperatures for short periods.

Technical Specifications

Material	Polyimide Film
Adhesive Type	Pressure Sensitive Silicone Adhesive
Thickness	30um~100um

Key Advantages

Extreme High-Temperature Resistance: Withstands long-term exposure to 260°C and short-term spikes above 300°C without melting, deforming, or leaving residue—ideal for reflow and wave soldering processes.
Strong Insulation & Chemical Resistance: Features a breakdown voltage of over 5kV and resists acids, alkalis, radiation, and solvents, effectively protecting sensitive electronic components.
Conformable & Residue-Free Removal: The adhesive offers balanced tack, leaving no residue or contamination after peeling. The flexible backing conforms easily to curved or irregular surfaces.

Primary Applications

High-Temperature PCB Protection: Masks gold fingers, connectors, and slots on circuit boards during reflow or wave soldering to prevent solder contamination or high-temperature oxidation.
Lithium Battery Tab Fixing: Secures and insulates tabs during cell manufacturing, resisting electrolyte exposure and subsequent high-temperature formation processes.
High-Temperature Spray Masking: Provides local protection for electronic components, motor coils, or automotive parts during high-temperature sandblasting, painting, or powder coating.
